Customized 1900MHz 3G Network Signal Booster PCS Repeater Amplifier

  • 1
  • 2

Brand Name : ATNJ

Model Number : AT-37-P

Certification : CE,ROHS，CCC，TUV,BV， ISO

Place of Origin : China

MOQ : 5Pcs

Price : USD+1000--1200+kit

Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability : 1000+unit+per day.

Delivery Time : 3-5 work days

Packaging Details : Standard neutral packing

1900MHz Frequency Range : 1850-1910MHz , 1930-1990MHz

Products Type : 3G Booster

Booster Gain : 85±3dB

Booster Power : 37±2dBm

Material : Zinc Alloy ,Plastic

Booster Bandwidth : Wide Range

Support network : 3G, 4G, Voice

Contact Now

Customized 1900MHz 3G Network Signal Booster PCS Repeater Amplifier

5 Watt Customized 1900MHz 3G Network Signal Booster PCS Repeater Amplifier

Product Detail:

Model No : AT-37-P

With ALC AGC Function

Can control gain automatically. Avoid base station interference

(Band 2) 1900MHz -- Uplink frequency : 1850 - 1910MHz / Downlink frequency : 1930 - 1990MHz


Network support : 3G 4G Voice


Gain : 90dB

Output power : 5watt


Power Supply : AC110V～220V;DC+24V 5A


Connector Type : N-F

Wide Range .

Single Band Repeater with AGC/MGC

Device Model

AT-37-P

Frenquecy Range

UplinK:1850-1910MHz Downlink:1930-1990MHz

Working System

Band2 PCS 1900MHz

Gain

85dB

Device Output Power

37dBm

Bandwidth

Wide Range

Ripple in Band

≤4dB

Noise Figure @ Max.Gain

≤6dB

V.S.W.R

≤2dB

MTBF

>50000Hours

Power Supply

AC110V～220V;DC+24V5A

Power Comsumption

<20W

Impedance Matching

50ohm

Mechanical Specification

RF Connector

N/F

Cooling

Heatsink Convection Cooling

Dimension

170*130*26(mm)

Net Weight

0.35KG

Installation Type

Wall Installation or Desk

Environment Conditions

IP55X

Origin

Shenzhen

Operating Temperature

-10°C~55°C

Further detail pls click here for downloading the products specification:

Selling Point

1. Smart LCD : Show the real-time signal strength.

2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.

3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.

4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.

5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-33dB.


Output Power : 5W/10W/20W

Power Supply : AC adapter

Size : 308*219* 135mm
Weight : 7.0kg

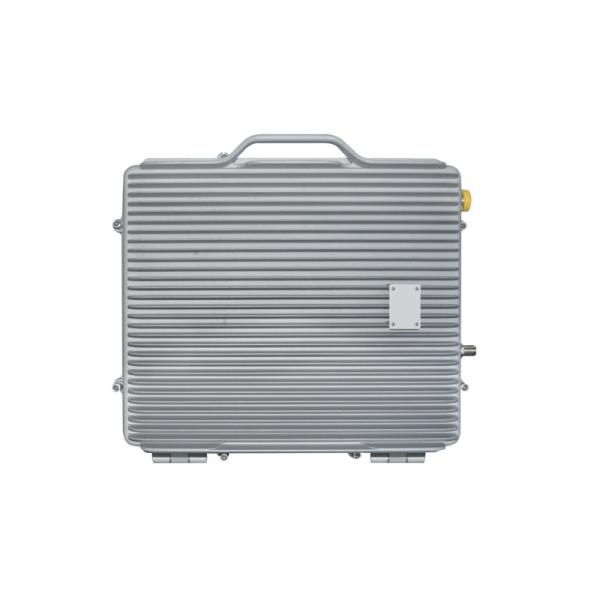

Product Pictures

Customized 1900MHz 3G Network Signal Booster PCS Repeater Amplifier

FAQ:

1. Q: Why choose us for cooperation?

A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.

2. Q: Can this mobile signal repeater create a signal where there is no cell signal before?

A: The mobile signal repeater cannot produce a signal, only amplify a weak one.

3. Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.

4. Q: What's your device lifespan?
A: Normally our device can be used 5-10 years.

5. Q: How many square meters can be covered?
A: For different models, the covered square meters are different.

6. Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
